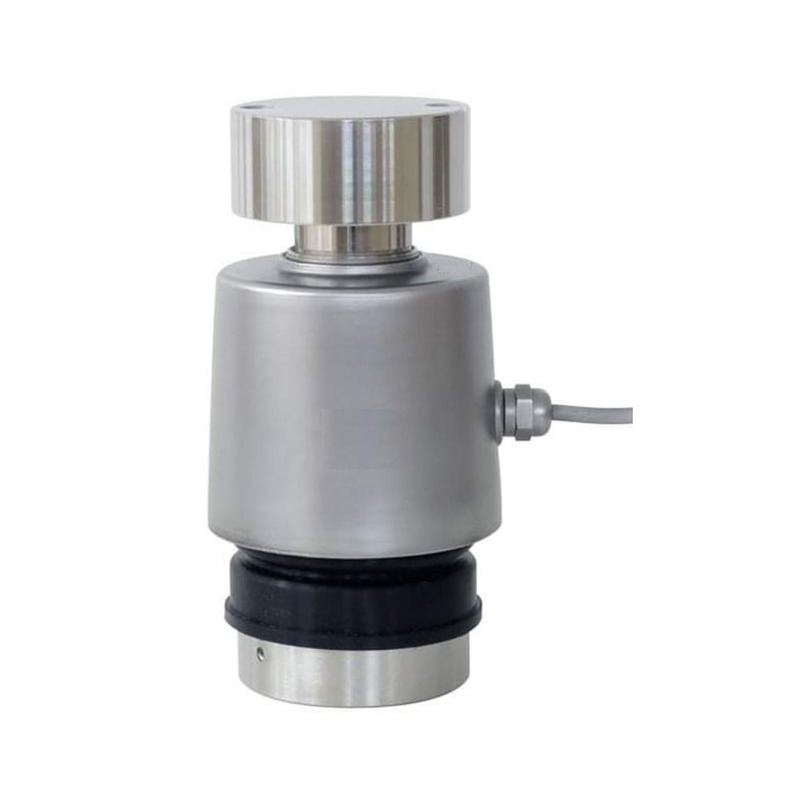

High Precision Flintec RC3 Load Cell for Truck Scales
FEATURES
1.Capacities: 30, 40t;
2.Self-aligning,Alloy steel single coulmn;
3.Hermetically sealed IP68;
4.Built-in surge protection tubes;
5.Interchangeable with Flintec RC3;
DESCRIPTION
The HCLC is a single column,alloy steel compression load cell.
This product is suitable for use in truck scale, road and rail weighbridge and process weighing applications.
The welded construction and built-in surge protection ensure that this product can be used successfully in harsh environments.
OUTLINE DIMENSIONS(mm)
SPECIFICATIONS
| From 30t to 40t | |||||||||||||||||
| Total Error | <±0.03 | %F.S | |||||||||||||||
| Repeatability Error | <±0.03 | %F.S | |||||||||||||||
| Creep Error over 30 min. | <±0.03 | %F.S | |||||||||||||||
| Rated output | 2.0±0.002 | mV/V | |||||||||||||||
| Zero balance | ±1 | %F.S | |||||||||||||||
| Zero shift after loading | <±0.05 | %F.S | |||||||||||||||
| Temperature effect on output | <±0.02 | %F.S/10℃ | |||||||||||||||
| Temperature effect on zero | <±0.02 | %F.S/10℃ | |||||||||||||||
| Reference temperature | 23 | ℃ | |||||||||||||||
| Temperature Range,compensated | -10…+40 | ℃ | |||||||||||||||
| Operating Temperature Range | -30…+70 | ℃ | |||||||||||||||
| Storage Temperature Range | -50…+85 | ℃ | |||||||||||||||
| Input resistance | 1150±50 | Ω | |||||||||||||||
| Output resistance | 1003±5 | Ω | |||||||||||||||
| Insulation resistance(50V) | 5000 | MΩ | |||||||||||||||
| Recommend excitation voltage | 10 | V DC | |||||||||||||||
| Maximum excitation voltage | 3...15 | V DC | |||||||||||||||
| Safe load limit | 150 | %F.S | |||||||||||||||
| Ultimate overload | 300 | %F.S | |||||||||||||||
| Cable | 12 | m | |||||||||||||||
| Sealing | IP68 | ||||||||||||||||
Note: FSO-Full Scale Output
All specifications listed subject to change without notice.
