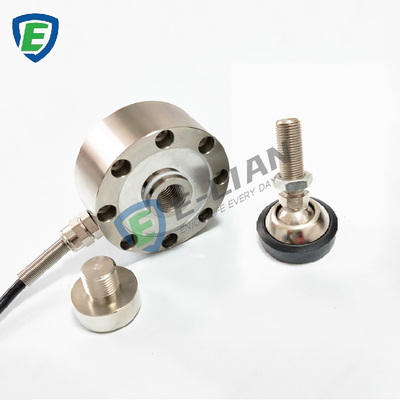

The Tension and Compression Load Cell is a low profile, high performance ring torsion type load cell and one of the newer products of weighing technology. The load cell has a symmetrical structure and very compact. The force is applied through a load application button or an application specific adapter part on a consistent internal thread in the center of the load cell. Through this center of force, the load cell is largely insensitive to eccentric loading. It is characterized with high accuracy and linearity.
Widely used in industrial systems for force measurement, crane scales, railroad scales, hopper scales and other weighing and measuring industrial automation measurement and control systems.
| Capacity | 0-500t |
| Material | Alloy steel/Stainless Steel |
| Rated Output | 2.0/3.0±10%mV/V |
| TEDS optional | |
| Zero Balance | ±1%F.S |
| Insulation | ≥5000M2/100VDC |
| Non-linearity | 0.03%F.S. |
| Recommended Excitation | 5-15V |
| Hysteresis | 0.03%f.S. |
| Operating Temp Range | -20~80℃ |
| Repeatability | 0.03%F.S. |
| Safe Load Limit | 150% |
| Creep(30min) | 0.03%F.S. |
| Ultimate Load Limit | 200% |
| Temp Effect on Output | 0.03%F.S./10℃ |
| Cable Size | φ5x3m |
| Temp Effect on Zero | 0.03%F.S./10℃ |
| Impedance | 20kg-1000kg:3502 1-30T:700250-500T14002 |
| Wire Connection | Ex+:Red; Ex-:Black; Sig+:Green; Sig-:White |
Elian Sensing is a high-tech company integrating production.R&D,sales and engineering services.Relying on the rich high-tech rosources in Xi'an,we have carried out technlcal cooperation with many universities and scientific research institutions, constantly breaking through technical barriers,improving product performance,and using leading technology to provide high-quality products for the water quallty monitoring industry. Based on the current rapid development of the Interet of Things technology,we launched a wireless water quality monitoring solution,combining smart terminals and traditional display units through wireless transmission to achieve real-time dynamic water quality monitoring functions such as data cloud display,remote cloud control,and upper and lower limit alarms.
We are committed to the water quality monitoring industry,actively innovating and improvingproducts,and optimizing industry application solutions.We take technology and quality as thecornerstone,honesty and service as the foundation.do a good job of water quality monitoring withour heart.and contribute to the development of the water quality monitoring industry.
Q:What information do I need to provide before placing an order?
A: The size, capacity and usage are necessary. Besides, we may need some other parameters.
Q:Can you design and customize products for me?
A: Definitely, we are extremely good at customizing various load cells. If you have any needs, please tell us. However, the customized products would postpone shipping time.
Q:How long is your warranty period?
A: Our warranty period is 12 months.
Q:I am the buyer purchasing a large number of load cells every year, can I visit your company and discuss in person?
A: We are delighted to meet you in China and really welcome you to communicate technical questions with us. If your coming could establish cooperative relationship, we are also delighted to pay travel expense for you..
Q: What are the applications of spoke type load cell?
A: Belt scale, batching scale, cement mixing plant, reaction kettle weighing system, tank weighing system, silo scale, etc.
